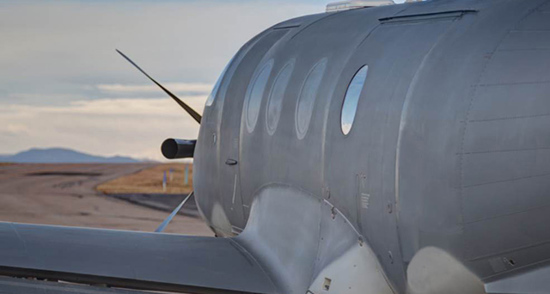

PC-12 Aircraft Modifications

Militaries and other government institutions around the globe depend on SNC’s unsurpassed PC-12 modification experience to deliver a specially equipped platform for their unique missions. We offer full-spectrum design, modification, integration, modernization, maintenance, test and certification services for special mission and commercial derivative aircraft. The multi-mission, multi-role PC-12, with SNC’s modifications, is a popular choice for ISR, CASEVAC/MEDEVAC, cargo carry/drop and troop transport.

Spec Sheets

PC-12 Features and Benefits

330 CF pressurized passenger cabin with seating for nine

Standard forward passenger door & large aft cargo door

Single-pilot certification

Certification for flight in known icing conditions

Rapid reconfiguration between missions

Retractable trailing-link landing gear allows grass & unimproved field operation

-

Max Cruise Speed

280 ktas | 322 mph
Max Range

(3Pax, 30,000ft) 1,560 nm | 1,795 sm
Takeoff Distance

2,650 ft | 808 m
Landing Distance

1,830 ft | 558 m
Rate of Climb (MTOW)

1,920 ft/min
Stall (MTOW)

67 kts IAS
Maximum Takeoff Weight

10,450 lbs | 4740 kg
Maximum Ramp Weight

10,495 lbs | 4760 kg
Maximum Landing Weight

9,921 lbs | 4500 kg
Usable Fuel

2,704 lbs (402 Gal)
Cabin Volume (Including Cockpit)

330 cu ft | 9.34 cu m
Cabin Length (Excluding Cockpit)

16 ft 11 in | 5.16m
Cabin Width

5 ft | 1.52m
Headroom

4 ft 10 in | 147m
Wingspan

53 ft 4 in | 16.25m
Tail Height

14 ft | 4.27m
Fuselage Length

47 ft 3 in | 14.40m

PC-12 Aircraft Modifications Product Sheet

Download
