AE-4500 Auto ESM System

AE-4500 Auto ESM Features & Benefits

Small SWaP

Open architecture

Pre-mission planning tools

Automatic search mode

Precision geolocation & targeting

Post-mission analysis

Automatic Spectrum Search & Geolocation

The AE-4500 System is a stand-alone collection and analysis system that includes all antenna, radio frequency (RF) and digital signal processing hardware and software for on-board emitter detection, deinterleaving, identification, geolocation, correlation and reporting.

Its mature, field-proven hardware and software has been installed and flown on small unmanned aerial vehicles (UAV), turboprop and business jet platforms. It is configurable for operations over multiple frequency ranges using a variety of antenna arrays, and is small enough to support wingtip antenna installations for optimal field-of-view coverage. Additional options support frequency extension, additional antennas and distributed installations for larger platforms.

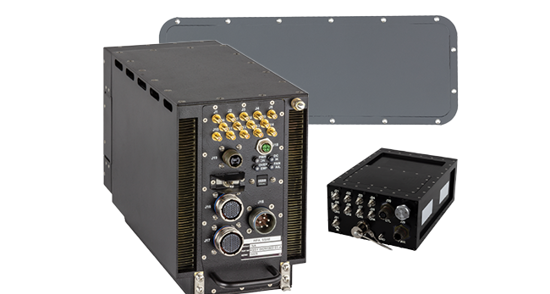

Receiver Processor Assembly (RPA)

Our Receiver Processor Assembly (RPA) is critical to passive, precision direction finding. It controls different interferometer antenna arrays to provide passive automatic search, identification and location of non-communication intelligence (COMINT) signals. The RPA provides the RF, digital and software processing to meet tough system requirements.

The AE-4500 Auto ESM System’s RPA controls system hardware to passively detect, collect, identify and locate radar emitters over the 0.5 to 40 GHz frequency range. A typical AE-4500 System configuration consists of two RPAs and two interferometer antenna arrays. The RPAs control the interferometer antenna arrays to operate in a manual set-on mode or an auto search mode. The RPA also interfaces to the host platform computer, GPS/INS NAV system and line-of-sight (LOS) or beyond-LOS (BLOS) datalink.

Featured News & Innovation

AE-4500 Ground ESM System at U.S. Marine Corps MAWTS-1 Exercise

INNOVATIONS BLOG

SNC Demonstrates AE-4500 Ground ESM System at U.S. Mari...

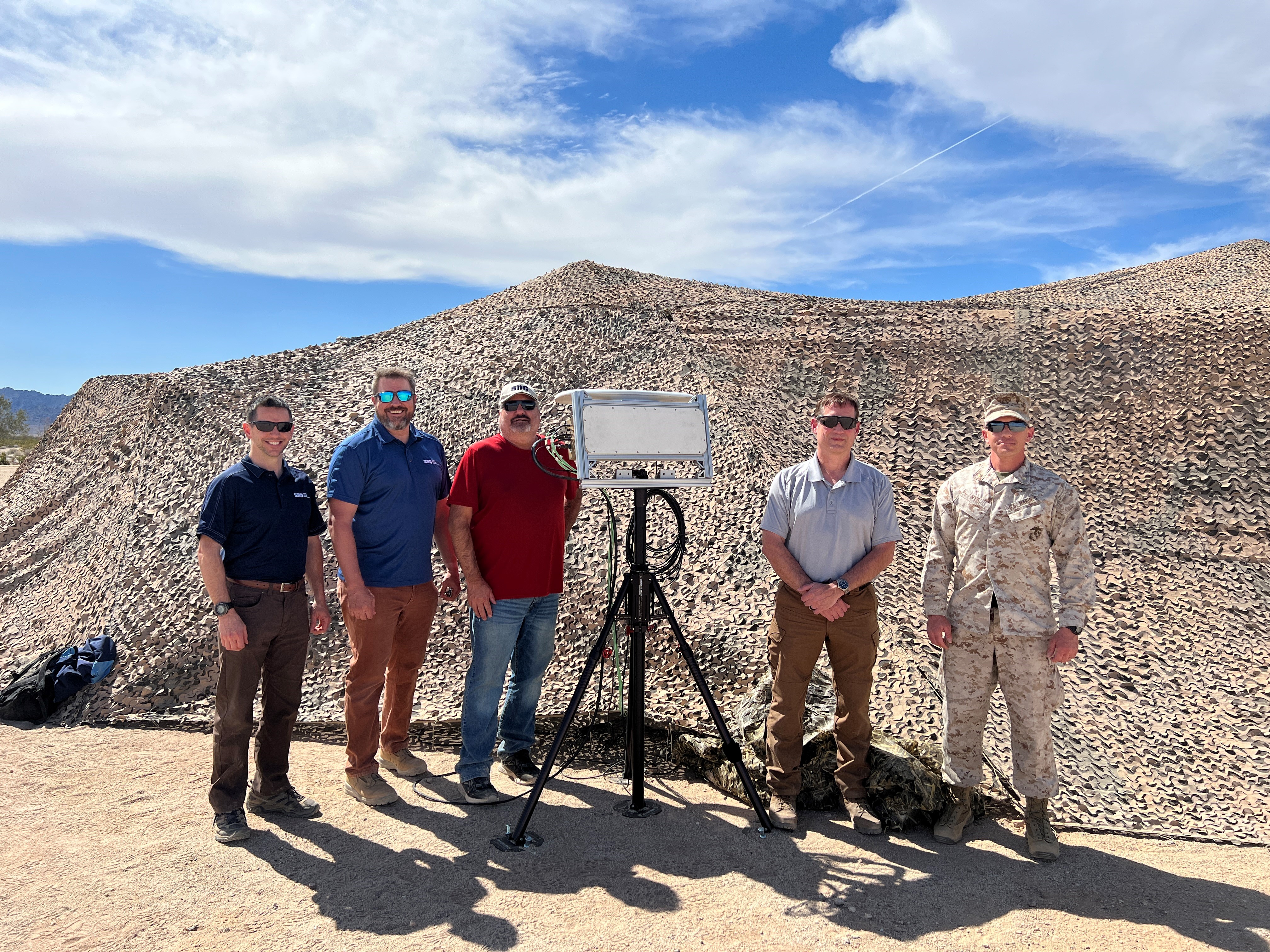

SNC recently supported a U.S. Marine Corps training exercise in Yuma, Arizona using the AE-4500 Auto ESM system. The AE-4500 is a modular, small size weight and power (SWaP), precision DF system designed for both manned and unmanned airborne platforms. Thanks in part to its modular architecture – the AE-4500 system was repackaged into a ground-based configuration to support the Marine Corps’ Weapons and Tactics Instructor Course 2-23.

Read Now

INNOVATIONS BLOG

SNC’s Disruptive ELINT Solutions Advance for Near-Peer ...

As one of the largest electronic intelligence (ELINT) and electronic support measure (ESM) solutions providers in the industry, SNC is re-engineering the connected battlefield through interoperable solutions from sensor-to-shooter, across domains.

Read Now

-

Specs

Technical Readiness Level (TRL) 9
Remote control from ground through datalink
Turnkey ESM system interfaces to tactical datalinks
Interfaces to platform INS/GPS for NAV data
Precision geolocation & targeting to 40 GHz
240-degree instantaneous azimuth coverage
Detection, identification & location of pulsed, CW, FMCW
On-board emitter deinterleaving & emitter identification
On-board emitter geolocation, correlation & reporting
Provides single-ship geolocation & supports multi-ship geolocation
Pre-mission planning tools
Post-mission analysis tools
Automatic Search Mode provides hands-off mission operations
Modular architecture supports UAVs, wingtip pods, turbo-prop aircraft & business jets
Light-weight, low-power
